Ohlins Road & Track DFV System: 2005-2014 Mazda Miata (NC)

Code: MAS Mi30S1


In stock

In stock

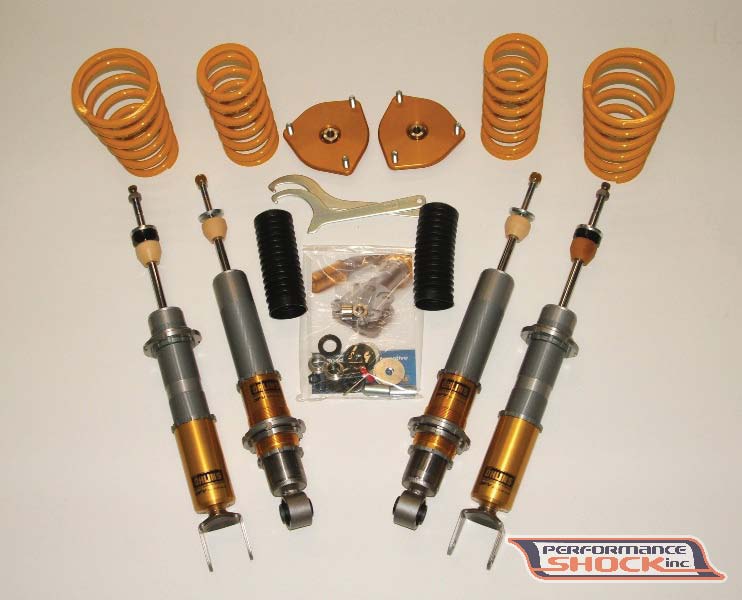

Simply put, the Ohlins Road & Track suspension is the best off the shelf suspension system for the Mazda Miata/MX-5 (2005-2014, NC chassis)that will be used for a combination of street and track use. This kit takes the already nimble MX-5 chassis to the next level, transforming it into a 'corners on rails' machine! Everything is included in this well thought out system, as usual, Ohlins has proven again why they are considered one of the best suspension companies in the world. Kit details listed below.


General features:

  • DFV (Dual Flow Valve)
  • Rebuildable
  • Corrosion salt spray tested (ISO 9277)
  • 2 Year limited warranty


Front features:

  • Inverted McPherson MonotubeStrut
  • Eibach ERS Coil Springs
  • Height adjuster (approx. 1,5 cm lower than standard, OE settings)
  • Spring preload adjuster
  • External adjuster controls both Compression and Rebound in matched steps
  • Dust boots (protects working cylinder from debris)
  • Monotube design
  • Includes spherical upper mounts


Rear features:

  • Ride Height adjustable
  • External adjuster controls both Compression and Rebound in matched steps
  • Eibach ERS Coil Springs
  • Dust boots (protects piston shaft from debris)
  • Light weight aluminum body
  • Monotube design
  • Reuse OE stock upper mounts

Spring Rates:

Front: 70 N/mm (400 lbs/in.) Rear: 40 N/mm (229 Lbs/in.)

All Road & Track dampers are subjected to corrosion tests according to ISO 9227. The end result is a 2-year warranty on Road & Track products – worldwide. Ohlins DFV – How it works!

Please use our Contact Us form or call (707) 938-5664 to check availability.

  • Model: MAS Mi30S1
  • Manufactured by: Ohlins


Additional information

Weight 65 lbs
