PSi ‘Raceline’ BMW E92 M3 suspension system (2-way)

Code: psi.E92M3.TTX462S.02


In stock

In stock


Performance Shock's Raceline suspension system for the BMW E92 M3. Featuring Ohlins TTX46 front struts and TTX36 (ILX) rear dampers. This configuration is 2-way adjustable; 1-way compression and 1-way rebound (low speed for both). The TTX46 features a low pressure through-rod design. The rear utilizes the TTX36 inline (ILX36) and can be configured as a true 'coil-over', or with spring in OE location with a ride height adjuster. [***C/O rear kits are only recommended for cars with re-enforced shock towers, preferrably a caged vehicle.]

A major advantage with the TTX46/36 damper is the integral reservoir that makes it very compact and easy to package. No longer is the balancing of reservoir damping ("can stack") to main piston damping required to avoid cavitation. With no reservoir valve, the internal pressure of the damper unit will be kept to a minimum. The low amount of hysteresis results in excellent short stroke/high force performance. The Ohlins TTX range of shocks require very low gas pressure which considerably improves grip without any loss of damping performance.

This is by far the best suspension package that you can install on your M3, period.


Key Kit Features:

  • Extremely broad external adjustment range – 22 clicks bump, 22 clicks rebound
  • Low internal friction
  • Direct damping response / low N2 pressure
  • Through-rod 46mm front strut
  • TTX46/ILX36 'piggyback reservoir' / 'inline' rear damper
  • Easy to access external adjustments
  • Adjustment tools included
  • System can be upgraded to 3-way or 4-way adjustable

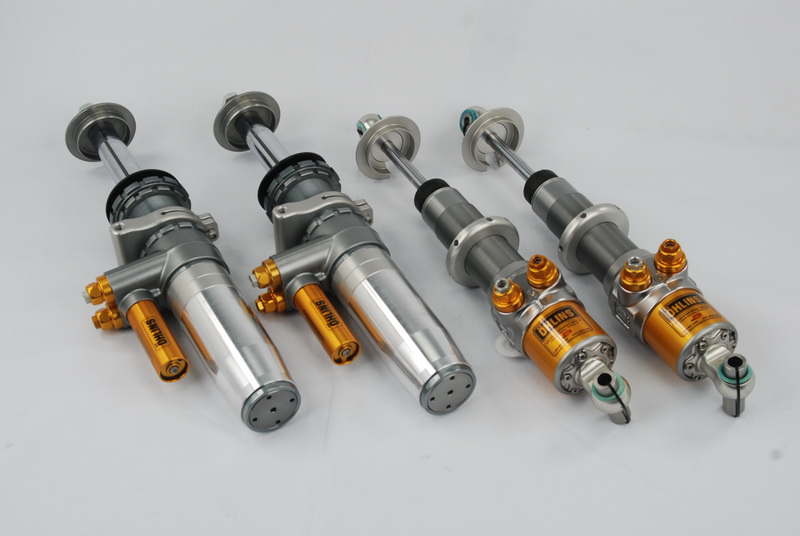

** 4-way damper pictured **

Race kit picture PSi 'Raceline' rear C/O kit image
Rear Damper installed picture PSi 'Raceline' non-C/O rear Damper installed image


Have a question regarding this item? Please use our Contact Us form or call (707) 938-5664 for Customer Service.

Additional information

Weight 58 lbs
