Description

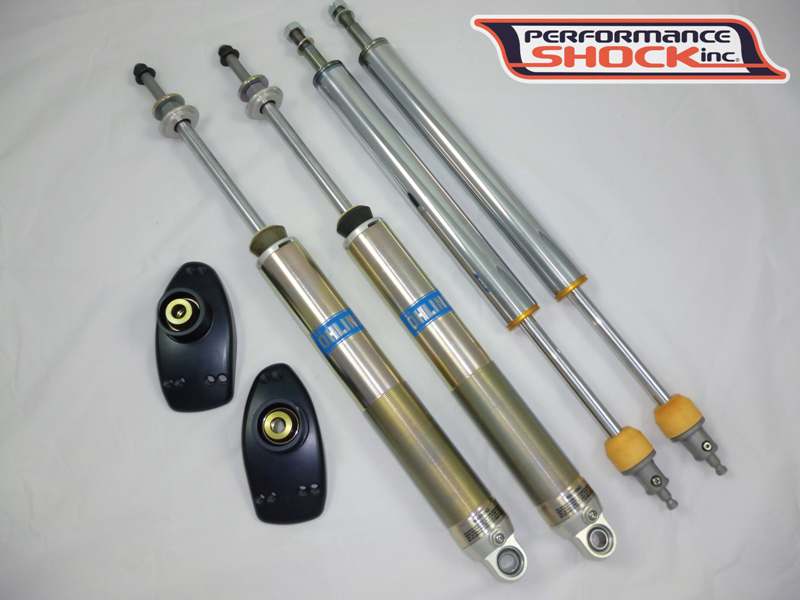

Ohlins 911 single adjustable replacement front strut insert and rear damper kit. Finally, an Ohlins suspension is available for older 911 chassis! The front damper is available in both non-adjustable, single and double adjustable versions. Both non-adjustable and adjustable version are based on a 40 mm OD cylinder tube which fit into the original Porsche McPherson strut casing. The (NA) piston shaft is 12 mm and has a balanced setting developed for both Tarmac and Gravel. The front adjustable version has a 16 mm piston shaft hollowed with a valve and jet that is externally adjustable. This one adjuster adjusts both compression and rebound with the use of a bleed system and also has a temperature compensating system. The rear shock has a 46 mm damping piston used together with a 16 mm piston shaft and has a similar external adjuster to the front.
Key Features:
* 36mm inverted front strut insert provides excellent lateral support
* Also available in Non Adjustable and Double Adjustable
* 46mm monotube steel body rear damper
* MODE upper mounts available separately (pictured but not included)
* Completely re-buildable and serviceable
Link to upper mounts: Mode 911 Front mounts # 911 343 002K1
