PSi ‘Raceline’ Audi R8 suspension system (4-way)

Code: psi.R8TTX4.01

$0.00

In stock

In stock

Description

Performance Shock's Raceline suspension system for the Audi R8 is born out of the Ohlins TTX line of racing dampers designed for vehicles participating in Racing, HPDE and track related events. This kit is built using Ohlins ILX36 dampers which are based upon the tremendously successful TTX40 damper design that captured top results in LeMans, ChampCar and WTCC series.

It features a twin tube design providing positive pressure build-up and has proven itself far superior to conventional techniques used in other racing dampers. Low internal friction, vast adjustment range and responsiveness even at the smallest strokes are amongst its virtues. The 4-way configuration includes low speed compression (LSC) and rebound (LSR)and high speed compression (HSC) and high speed rebound (HSR), this is the ultimate set-up for an R8 that is a track monster.

A major advantage with the TTX36 inline damper is the integral reservoir that makes it very compact and easy to package (front damper), without the need to route external reservoir lines. The top eye can easily be re-clocked without opening the damper. No longer is the balancing of reservoir damping ("can stack") to main piston damping required to avoid cavitation. With no reservoir valve, the internal pressure of the damper unit will be kept to a minimum. The low amount of hysteresis results in excellent short stroke/high force performance. The Ohlins TTX range of shocks require very low gas pressure which considerably improves grip without any loss of damping performance.

**SPRINGS ARE SOLD SEPARATELY**

Key Kit Features:

* Extremely broad external adjustment range (22 clicks bump/rebound)
* Low internal friction
* Direct damping response / low N2 pressure
* TTX36 'inline' front damper
* TTX36 'piggyback reservoir' rear damper
* Does NOT include EDC emulators

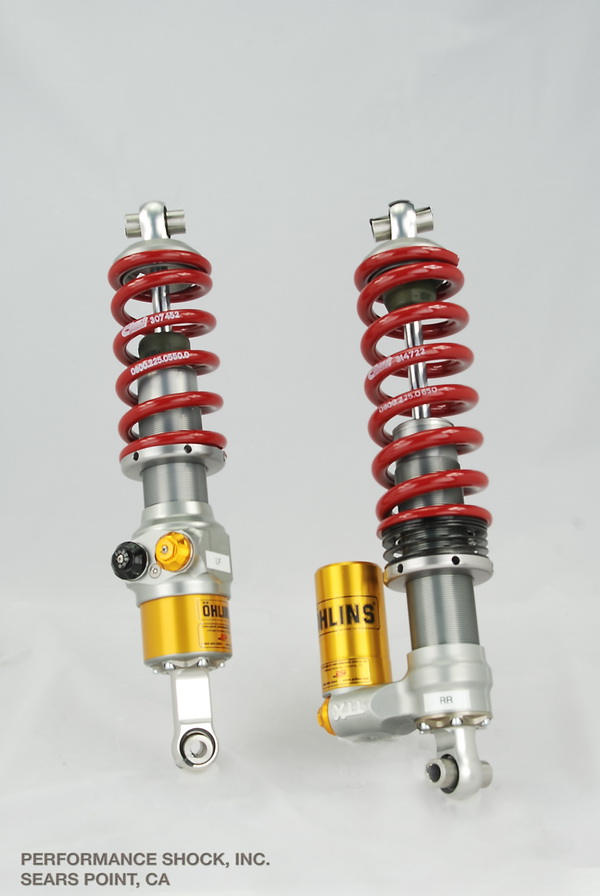

Front Damper picture PSi 'Raceline' front Damper installed image
Rear Damper picture PSi 'Raceline' rear Damper installed image

Have a question regarding this item? Please use our Contact Us form or call (707) 938-5664 for Customer Service.



Additional information

Weight 40 lbs
