PSi/Ohlins TTX Honda S2000, T3 spec suspension

Code: psi.S2000.TTX.T3


In stock

In stock

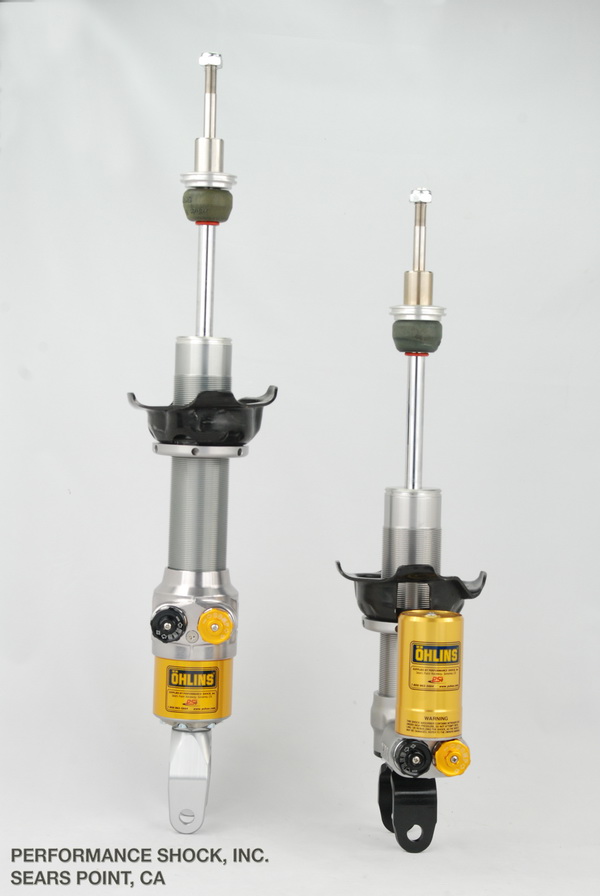

Performance Shock's new Ohlins TTX based suspension system for Honda S2000 vehicles competing under SCCA/NASA T3 class rules. This kit, built using Ohlins TTX36 & ILX36 dampers are based upon the tremendously successful TTX40 damper design, which captured top results in the LeMans, ChampCar, WTCC series etc.

It features a twin tube design providing positive pressure build-up and has proven itself far superior to conventional techniques used in other racing dampers. Low internal friction, vast adjustment range and responsiveness even at the smallest strokes are amongst its virtues. The standard configuration is 2-way adjustable; 1-way compression and 1-way rebound, but is easily upgradeable to 3 or even 4-way adjustable.

A major advantage with the TTX36 inline damper is the integral reservoir that makes it very compact and easy to package (front damper). The top eye can easily be re-clocked without opening the damper. No longer is the balancing of reservoir damping ("can stack") to main piston damping required to avoid cavitation. With no reservoir valve, the internal pressure of the damper unit will be kept to a minimum. The low amount of hysteresis results in excellent short stroke/high force performance. The Ohlins TTX range of shocks require very low gas pressure which considerably improves grip without any loss of damping performance.


Key Kit Features:

  • Utilizes OE spring perches & upper mounts (to meet class rules)
  • Short rear damper to obtain necessary travel in motorsport vehicles
  • Extremely broad external adjustment range (22 clicks bump/rebound)
  • Low internal friction
  • Direct damping response / low N2 pressure
  • TTX36 'inline' front damper
  • TTX36 'piggyback reservoir' rear damper
  • Pillow Ball Upper Mounts available upon request


**NOTE** This kit requires use of your existing OE spring perches! A Core charge of $300.00 will be charged and credited back once your OE units have been received. Of course, you can always send your OE units to be modified at the start.

Have a question regarding this item? Please use our Contact Us form or call (707) 938-5664 for Customer Service.


Additional information

Weight 30 lbs
